Sliding Door Rollers: Types, Sizes, Bearings and Load – A Complete Guide from the Roller Factory

A sliding door roller is the wheel-and-bearing unit that carries the weight of a sliding door or window and lets it run along a track. Choosing one means matching five things: roller type, wheel material, groove profile, bearing and rated load. HIPAD has made bearings and rollers since 2000 and supplies sliding door rollers, window rollers, roller strips, embedded rollers and bearing wheels to OEM and wholesale buyers in 60+ countries. This guide explains each choice and links to every HIPAD roller family.

  • Door · window · wardrobe · shower
  • Nylon · POM · PU · steel wheels
  • U · V · flat groove
  • ZZ / RS ball bearings
  • Single · tandem · strip
  • OEM since 2000
Rodillos para puertas correderas, rodillos para ventanas y ruedas con rodamientos de nailon y acero HIPAD

What Is a Sliding Door Roller?

A sliding door roller is a small assembly of a wheel, un ball bearing and a housing (also called a carriage or bracket). Bottom-rolling rollers sit inside the lower rail of the door or window sash and run on a track in the frame. Top-hung rollers hang the door from an overhead track, as on barn doors, glass partitions and many sliding shower doors.

The roller decides how heavy a door can be, how quiet and light it feels, and how long it lasts. A roller that is too weak, uses the wrong wheel material or does not match the track profile wears flat, jumps the track or seizes. Rollers are also called sliding door wheels, door runners (UK), carriages, patio door rollers, roldanas (Spanish) and roldanas para portas o rodízios (Portuguese).

HIPAD Rollers: Key Facts

  • Fabricante: HIPAD, Qingdao, China; bearing and roller production since 2000
  • Families: roller assemblies, roller strips, embedded rollers, adjustable and hanging rollers, nylon bracket and window rollers, track roller systems, roller wheels, miniature bearings
  • Wheels: nylon (PA), POM, PU, steel and stainless steel; U, V and flat grooves
  • Bearings: ZZ (shielded) and RS (sealed) miniature ball bearings
  • Housings: galvanized steel, stainless steel 304 / 316, aluminum, nylon
  • In-house: 60+ injection molding machines and 2000+ mold sets
  • Cómo hacer un pedido: MOQ from 1000 pcs by model · samples 5–7 days · production 20–25 working days
Roller families

HIPAD Roller Families: Find the Right Range

Each family below has its own page with models, drawings and specifications. Start with the family that matches your door or window system, then send us a sample or profile drawing to confirm the exact model.

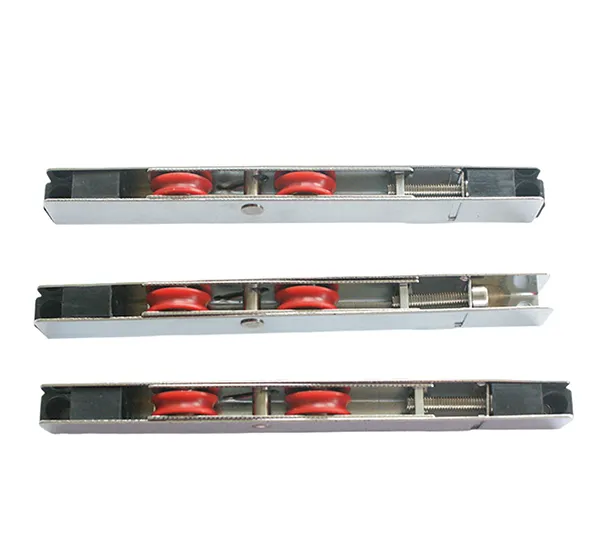

Tira de rodillos multirrueda HIPAD para puertas correderas con ruedas de nylon de colores
Heavy doors

Sliding Door Roller Strips

Inline carriages with 4, 6 or 8 wheels that spread the load of heavy and double-glazed panels.

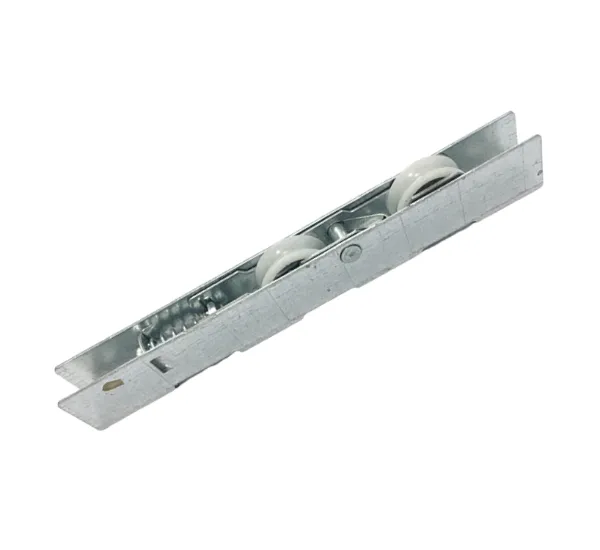

HIPAD embedded sliding door rollers concealed in the profile
Concealed

Embedded Sliding Door Rollers

Rollers built into the bottom rail cavity of the profile, hidden from view, for clean aluminum door designs.

HIPAD adjustable bracket roller with nylon wheel
Ajustable

Adjustable & Hanging Rollers

Bracket rollers with height adjustment and hanging rollers for top-hung, wardrobe and interior sliding doors.

De nuestro catálogo

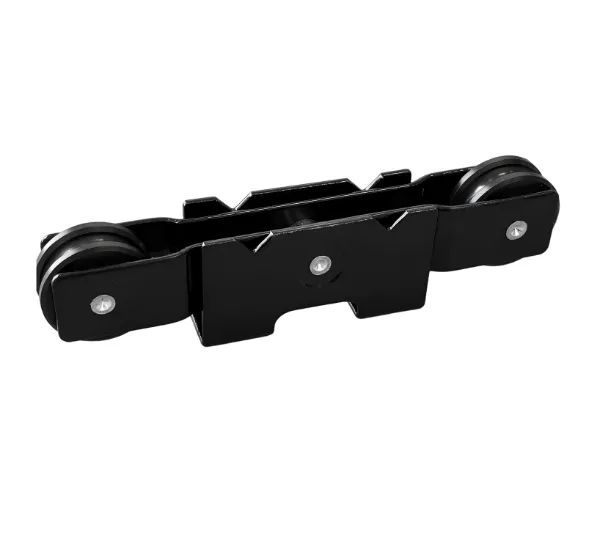

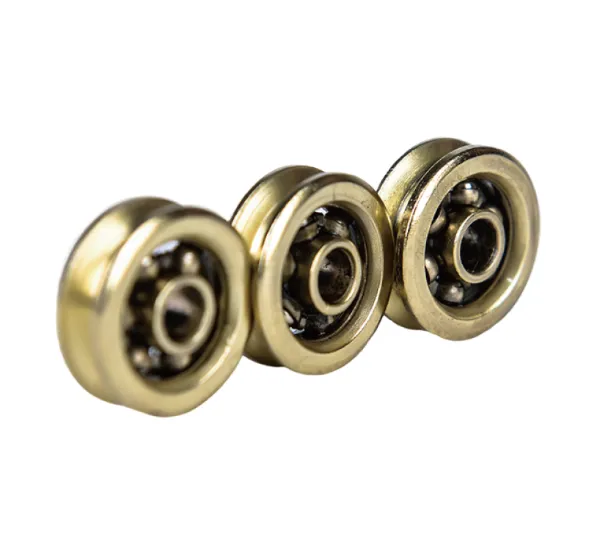

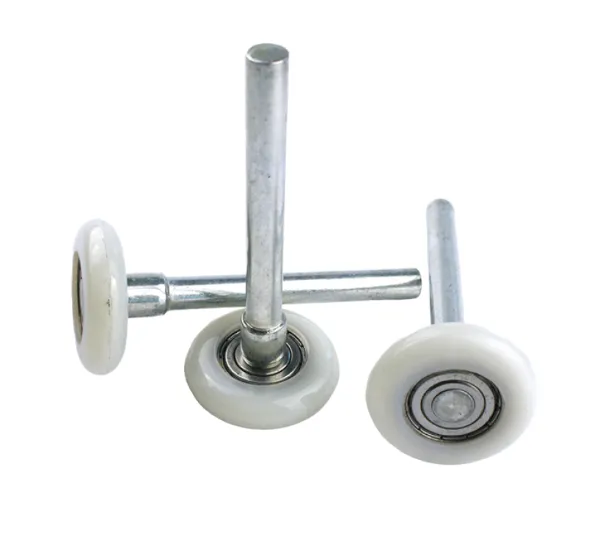

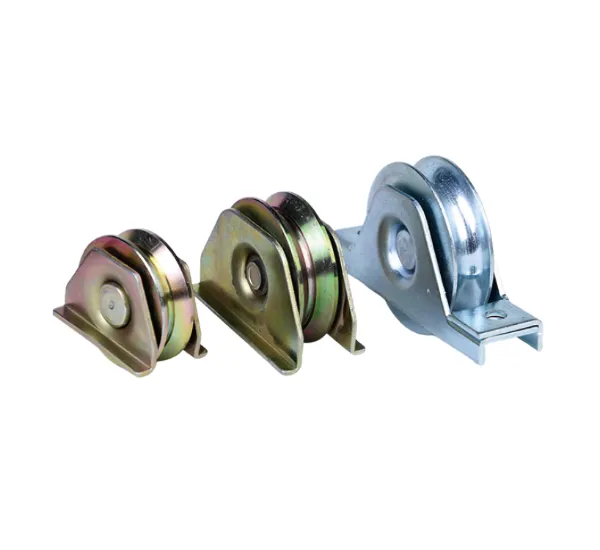

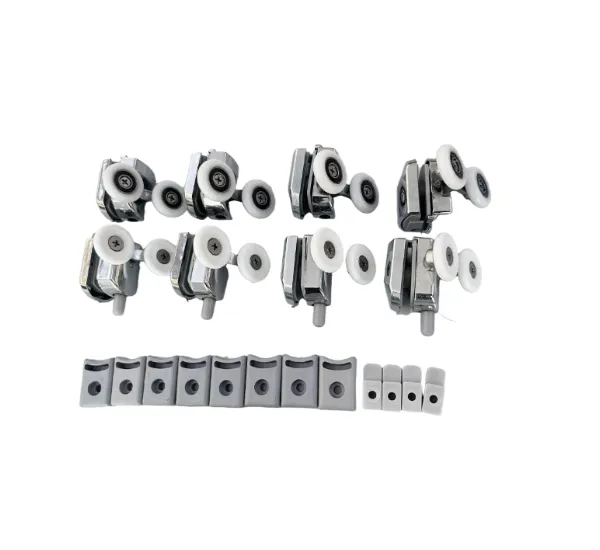

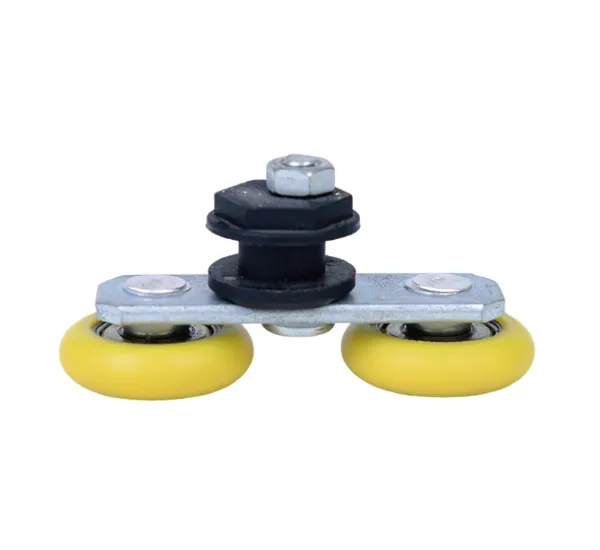

Sliding Door and Window Rollers from Our Factory

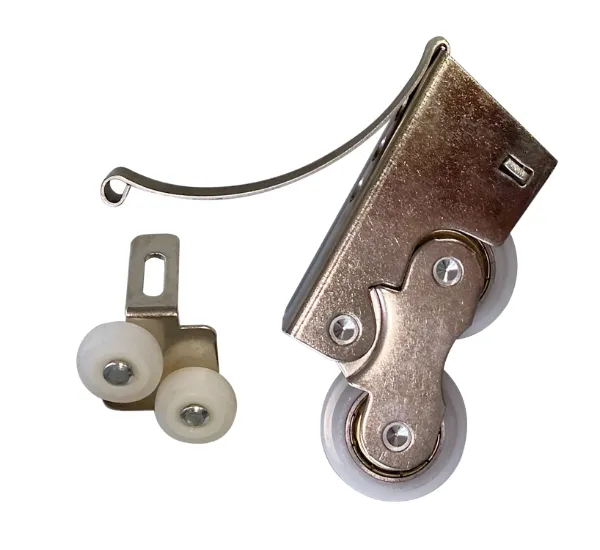

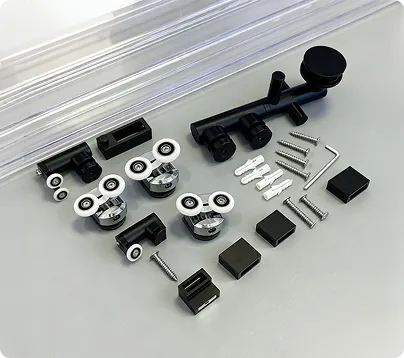

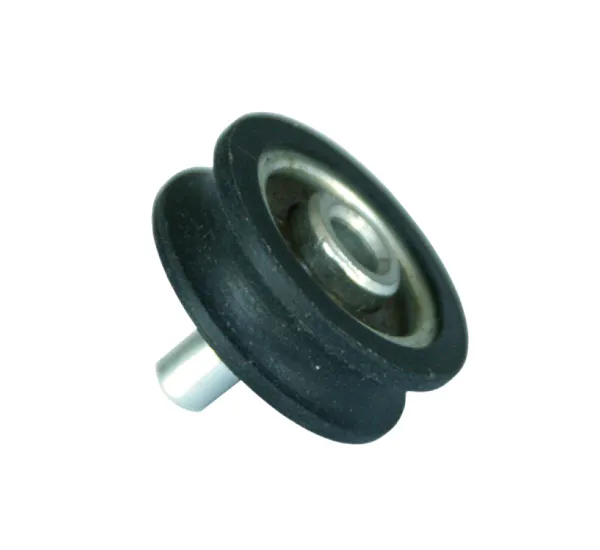

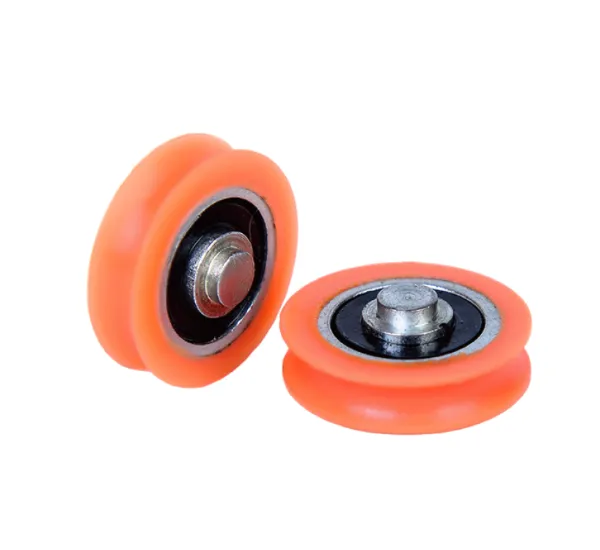

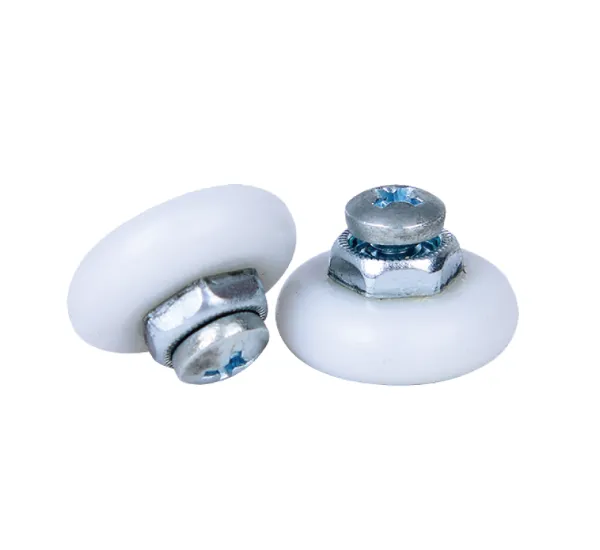

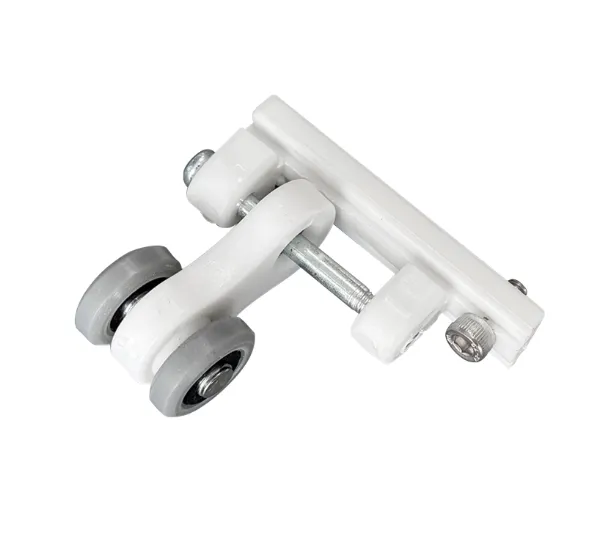

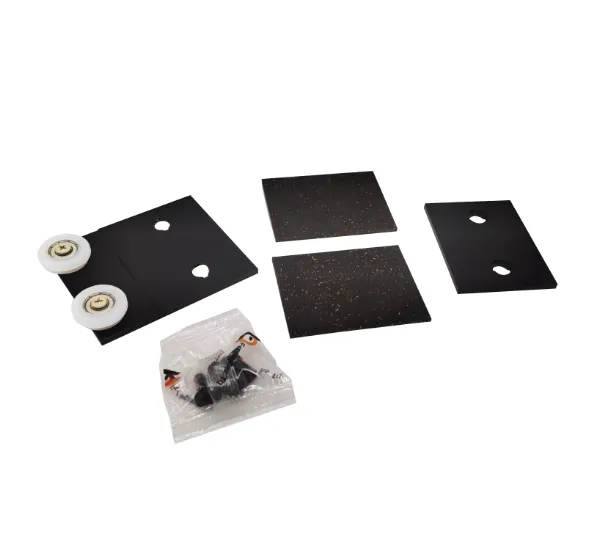

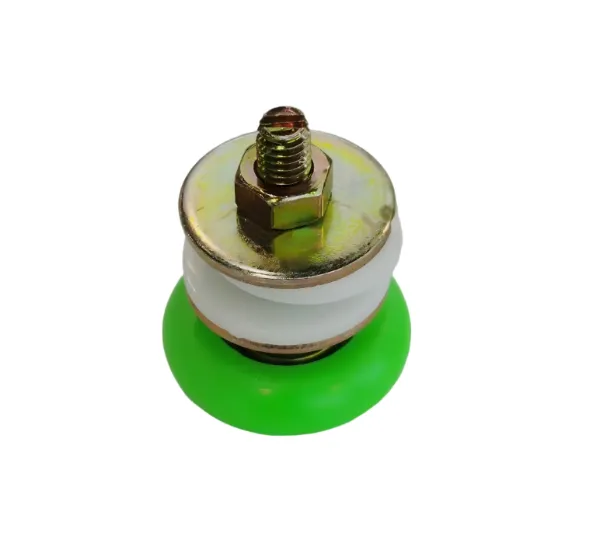

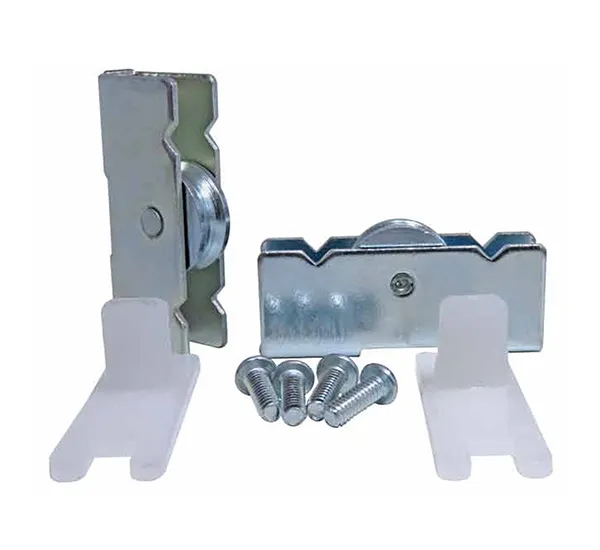

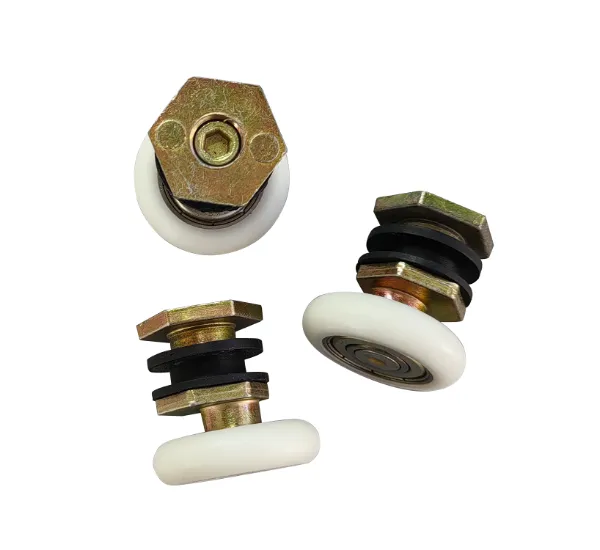

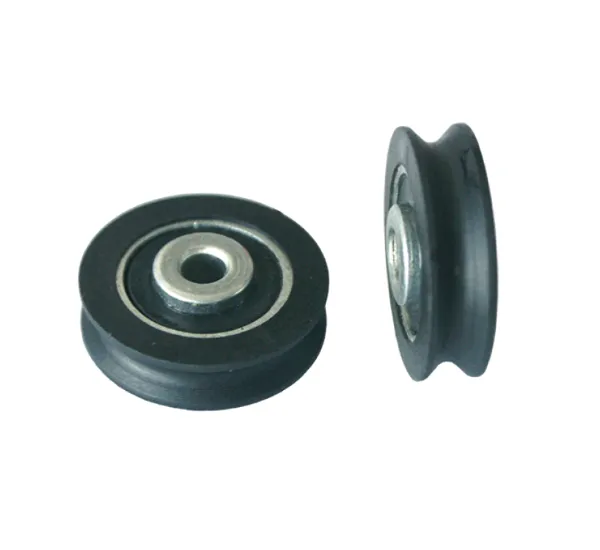

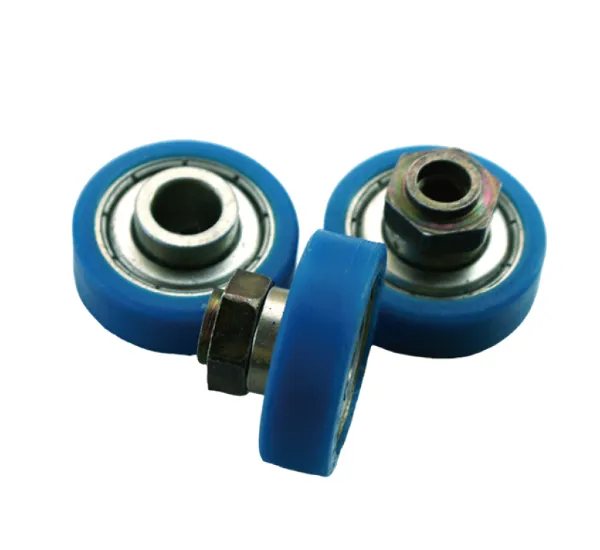

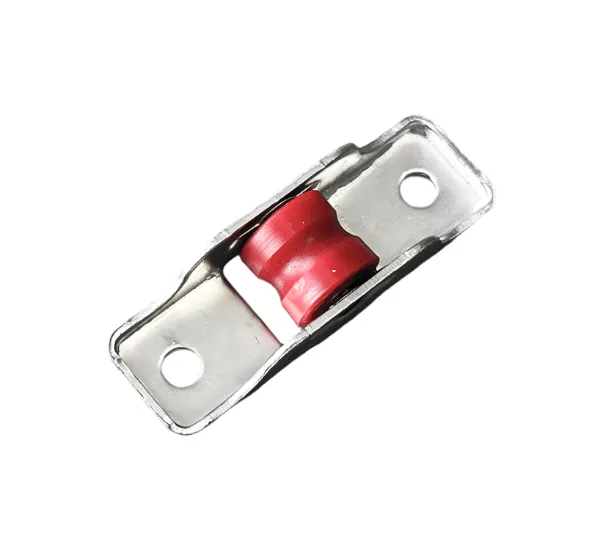

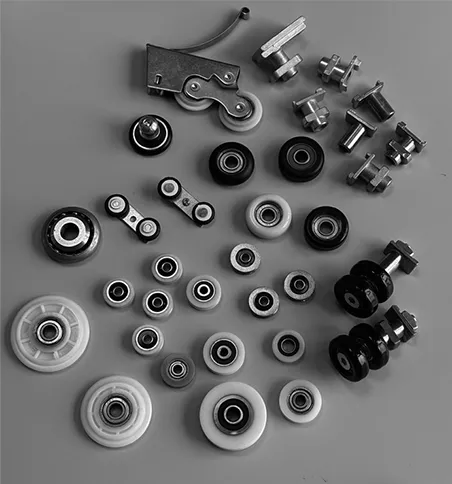

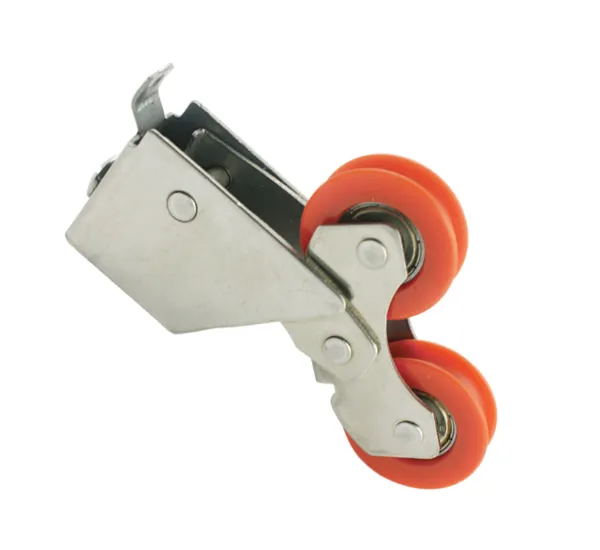

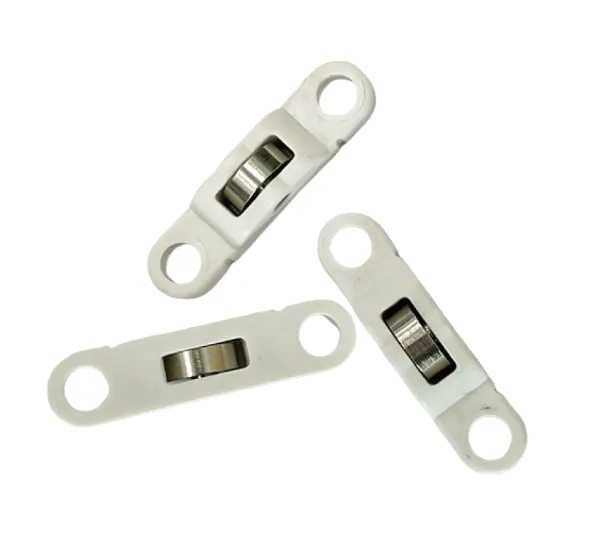

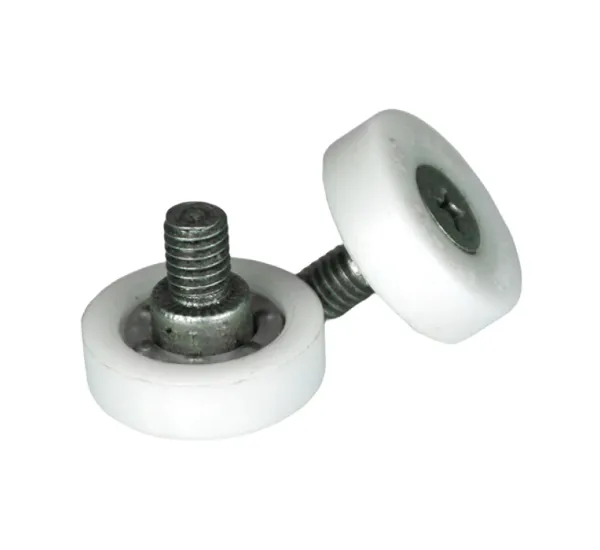

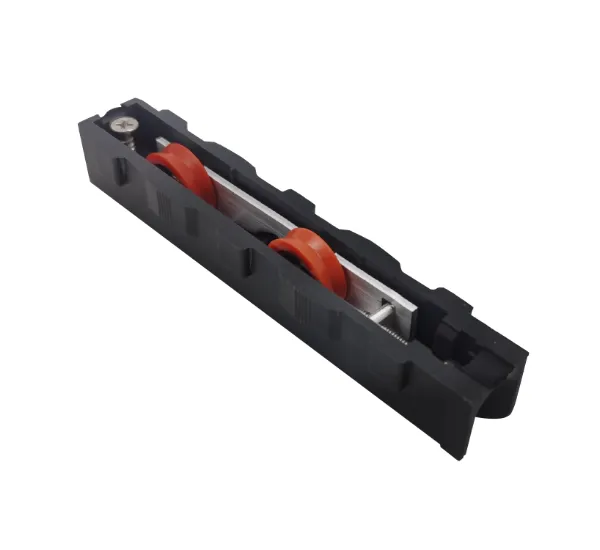

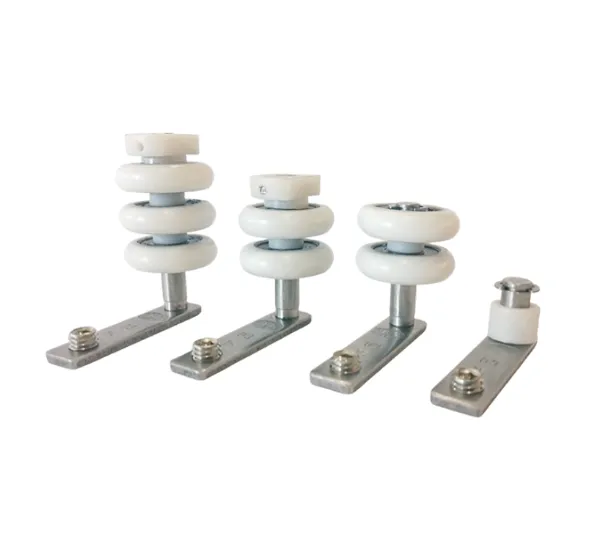

A small selection of the HDR roller range. Wheel color, housing finish and packing can be changed for your brand and market. Ask for the full catalog with drawings.

Step 1 · Roller type

Types of Sliding Door Rollers

Roller type follows the door system. Bottom-rolling rollers carry the panel from below; top-hung rollers carry it from above. The drawings show each type in cross-section.

Sliding door roller types in cross-section Five sections: a single-wheel roller in the bottom rail of a door, a tandem roller with two wheels, an embedded roller hidden in the profile, a multi-wheel roller strip, and a top-hung roller hanging the door from an overhead track. The door profile is light grey, wheels are dark circles, housings are green and tracks are dark grey. Single-wheel rollerLight doors, windows Tandem rollerPatio and heavier doors Embedded rollerHidden in the profile Roller strip4–8 wheels, heavy panels Top-hung rollerBarn, glass, shower doors
Grey = door or window profile, green = roller housing, dark circles = wheels, dark bar = track. Not to scale.
Roller typeCómo funcionaUso habitualAjusteHIPAD family
Single-wheel rollerOne bearing wheel in a housing, two per sashSliding windows, light interior doorsFixed or screw-adjustableWindow rollers
Tandem (double-wheel) rollerTwo wheels share the load in one housingAluminum patio and balcony doorsHeight-adjustableRoller assemblies
Embedded rollerFitted inside the bottom rail cavity, not visibleModern aluminum door profilesAdjustable through an access holeEmbedded rollers
Roller strip (inline)4, 6 or 8 wheels in one long housingHeavy and double-glazed doors, Middle East style systemsUsually fixedRoller strips
Bracket / hanging rollerRoller on a bracket fixed to the panel face or topWardrobes, interior and top-hung doorsBracket slot or screwAdjustable & hanging rollers
Top-hung glass rollerWheels run on an overhead tube or rail; door hangs belowGlass partitions, barn doors, sliding showersEccentric or screwSliding shower hardware
Step 2 · Wheel material

Nylon vs POM vs PU vs Steel Roller Wheels

Respuesta rápida: nylon is the standard for quiet windows and most doors; POM runs smoother with less wear; PU is the quietest on metal tracks; steel and stainless steel carry the heaviest doors and outdoor gates. Match the wheel to the track material and the door weight, not to appearance.

Wheel materialNoiseLoadWear on aluminum trackIdeal paraWatch out for
Nylon (PA)QuietLight to mediumGentleSliding windows, residential doors, wardrobesCan absorb moisture; flat spots if overloaded
POM (acetal)QuietMedioGentleSmooth, low-friction doors and windowsCosts more than nylon
PU (polyurethane tread)QuietestMedium to heavyVery gentlePremium patio doors, glass partitionsTread can wear in dirty tracks
AceroLouderpesadoHarder on soft tracksLarge and heavy doors on steel or stainless tracksNeeds corrosion protection
Acero inoxidableLouderpesadoHarder on soft tracksBathrooms, coastal and outdoor doorsMayor coste

Nylon wheels are made in many colors: white, black, blue, yellow, orange and purple are all common, and many markets use color to tell systems apart. Wheel color is free to choose on OEM orders.

Step 3 · Groove and track

Match the Wheel Groove to the Track

The tread shape of the wheel must match the top of the track. A wrong match is the most common cause of noise, uneven wear and doors jumping off the track.

Wheel profileRuns onFuerza
U-groove (round)Round rail or round-top trackSelf-centering, smooth
V-grooveV-shaped or angle trackPrecise guiding, low play
Flat treadFlat track or flat ribTolerant of small misalignment
Flanged (H-type)Flat rib between two flangesHolds the wheel on the track

Send a 100 mm piece of your track or a profile drawing. We match the groove, wheel diameter and housing height to it.

Roller wheel groove profiles and matching tracks Four wheel cross-sections over their tracks: a U-groove wheel on a round rail, a V-groove wheel on a V track, a flat wheel on a flat track and a flanged wheel on a flat rib. U-grooveround rail V-grooveV track Flatflat track Flangedflat rib
Dark = wheel (bearing in grey), mid-grey = track. Not to scale.
Step 4 · Bearing

Roller Bearings: ZZ vs RS and Common Sizes

Most door and window rollers use a miniature deep-groove ball bearing pressed into the wheel. The bearing sets the smoothness and life of the roller far more than the wheel itself. HIPAD started in 2000 as a bearing assembler, and bearings remain an in-house product line.

ZZ (shielded)RS / 2RS (sealed)
ClosureTwo metal shieldsTwo rubber seals
FrictionLower, runs lighterSlightly higher
Dust and waterKeeps out coarse dustBetter against fine dust and splashes
Ideal paraIndoor doors, windows, wardrobesPatio doors, bathrooms, dusty or coastal sites

Single-bearing wheels suit light doors. Double-bearing wheels, or two wheels per housing, keep the wheel square to the track under heavy load and resist wobble.

RodamientoBore × OD × width (mm)Typical roller use
6233 × 10 × 4Very small window and shower wheels
6944 × 11 × 4Small window wheels
6244 × 13 × 5Window and wardrobe wheels
6255 × 16 × 5Window and light door wheels
6266 × 19 × 6Door and shower rollers
6088 × 22 × 7Standard sliding door rollers
6099 × 24 × 7Larger door rollers
690010 × 22 × 6Thin-section door wheels
620010 × 30 × 9Heavy-duty door and gate wheels
620112 × 32 × 10Heavy-duty door and gate wheels
Standard dimensions of deep-groove ball bearings. HIPAD supplies the 600, 620, 680 and 690 series in ZZ and RS versions; see miniature ball bearings.
Step 5 · Load

How to Choose a Roller for the Door Weight

Respuesta rápida: work out the panel weight, divide it between the roller units, and choose rollers whose rated load is at least 1,5 veces the share each one carries for daily use (1.25 times is the minimum for light residential doors). Most sliding panels run on two roller units, one near each end.

Estimate the panel weight

  • Glass weighs about 2,5 kg por m² por milímetro of thickness. Count both panes in double glazing: 5 + 5 mm = 10 mm of glass.
  • Add about 20–30% for an aluminum frame, or weigh one finished sash.
  • Example: a 1000 × 2200 mm patio sash with 5 + 12A + 5 mm double glazing: 2.2 m² × 25 kg = 55 kg of glass, plus about 25% frame = about 69 kg. Each of two rollers carries about 35 kg; with a 1.5 safety factor, choose rollers rated for at least 52 kg each, so a tandem roller is the safe choice.

Send the sash size, glass build-up and profile drawing. We recommend the roller and confirm its rated load by test.

Roller typeTypical panel weight (2 roller units)
Window roller, single nylon wheel20–40 kg
Wardrobe and interior door roller20–40 kg
Single-wheel door roller with bearing40–80 kg
Embedded door roller60–120 kg
Tandem (double-wheel) door roller80–150 kg
Top-hung multi-wheel glass rollerUp to 100–120 kg (HIPAD 4-wheel and multi-wheel hangers)
Roller strip, 4–8 wheels120–300 kg
Steel-wheel heavy-duty roller150–300 kg and above
Typical planning ranges for one sliding panel. The rated load of each HIPAD model is confirmed against your drawing and by load testing before production.
Replacement & OEM

How to Measure a Sliding Door Roller

For a replacement roller or an OEM match, measure the old roller with calipers, not a ruler. These dimensions decide whether a roller fits the profile cavity and the track.

  1. Housing length (L), width (W) y height (H), with the adjustment screw fully in.
  2. Wheel diameter (D) y wheel width (T).
  3. Groove profile: U, V, flat or flanged, and the groove width.
  4. Rango de ajuste: how far the wheel moves up and down.
  5. Fixing: posición de los orificios para tornillos, pestañas de clipado o fijación mediante tapas laterales.
  6. Pista: la forma y el ancho de la parte superior del riel, y su material.
  7. Door: peso del panel, composición del vidrio y uso diario.
Sliding door roller measurement points Vista lateral de una rueda con flechas para la longitud de la carcasa L, la altura de la carcasa H, el diámetro de la rueda D y el rango de ajuste, y una vista frontal que muestra el ancho de la carcasa W y el ancho de la rueda T. LHDajuste WT Vista lateralVista de extremo
L, W, H = carcasa; D, T = rueda; ajuste = rango de ajuste de altura.

Rodillos por aplicación: puertas, ventanas, armarios y duchas

SolicitudRodillo convencionalRuedaRodamientoRequisito principal
Ventana corredera de aluminioRueda simple o tándem pequeño, tipo soporteNylon o POMZZ, serie 600Bajo costo, silencioso, se adapta a la cavidad de la hoja
Puerta de aluminio para patio / balcónTándem ajustable o rodillo empotradoNailon, POM o PUZZ o RS, 608 / 626Carga, ajuste de altura, deslizamiento suave
Puerta pesada o con doble acristalamientoTira de ruedas o tándem con ruedas de aceroNylon o aceroRS, 608 / 6200Carga distribuida entre múltiples ruedas
Armario / puerta de interiorRueda con soporte o colganteNylon o POMZZ, serie pequeñaDeslizamiento silencioso, tamaño compacto
Mampara de cristal / puerta corredera tipo graneroRodillo suspendido sobre riel o tuboNailon, PU o aceroRSEstética, antisalto, peso de la puerta
Puerta de ducha correderaRodillo para ducha suspendido o excéntricoNylon o POMRS, acero inoxidableResistencia a la corrosión; consulte herrajes para mamparas correderas

Rodillos para sistemas de perfiles regionales

Los perfiles para puertas y ventanas correderas varían según la región, al igual que los rodillos compatibles con ellos. HIPAD suministra rodillos adaptados a los sistemas locales de aluminio para compradores de América Latina (incluidos México, Perú y Brasil), Oriente Medio (incluido Irak) y Asia Central; entre ellos, conjuntos en línea de cuatro ruedas para sistemas de estilo de Oriente Medio y perfiles de puertas de Sudamérica. Envíe una sección del perfil o una muestra del rodillo y adaptaremos la carcasa a la cavidad.

Instalación, ajuste y mantenimiento

  1. Limpie el riel y compruebe que esté recto y sin daños antes de colocar ruedas nuevas.
  2. Coloque las ruedas cerca de cada extremo del riel inferior, normalmente a 50-100 mm de las esquinas.
  3. Levante la hoja sobre el riel y bájela con cuidado para que las ruedas se asienten en la ranura.
  4. Gire los tornillos de ajuste para elevar la hoja hasta que se despegue del riel de manera uniforme y las holguras con respecto al marco queden paralelas.
  5. Deslice la puerta en todo su recorrido y compruebe que se mueve de forma silenciosa y sin rozar.
  6. Mantenga los rieles limpios. Aspire la suciedad cada pocos meses; no use grasa espesa, ya que acumula arenilla.

Common Roller Problems and Fixes

ProblemaCausa probableCorregir
Door is hard to slideWorn bearing, dirt in the track, rollers set too lowClean the track; raise the rollers; replace worn rollers
Grinding or noiseDamaged bearing or flat spot on the wheelReplace with sealed (RS) bearing wheels
Door jumps the trackWrong groove profile, worn wheel, uneven heightMatch the groove to the track; reset both rollers level
Wheel worn flatOverload or wrong wheel materialUse a tandem or strip roller, or a POM / PU wheel
Rust on the housingPlain steel in wet or coastal areasUse stainless steel housings and RS bearings
¿Por qué comprar en HIPAD?

A Roller Factory That Started with Bearings

HIPAD began in 2000 assembling bearings and precision motion parts. In 2012 we upgraded to a modern factory and brought more parts in-house, and from 2016 we used our bearing and roller experience to build complete sliding systems. Our brand line, Easy Rolling, Easy Life, comes from that roller heritage. Wheels are molded on our own injection machines, bearings are fitted and tested in-house, and housings are stamped and assembled under one quality system.

25+years of bearing and roller production
60+injection molding machines for wheels
2000+juegos de moldes para una personalización rápida
60+países a los que se suministra

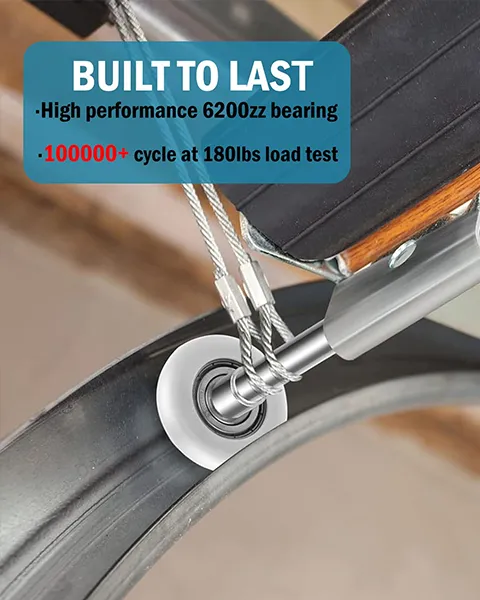

Pruebas de durabilidad y rendimiento de carga de los rodillos para puertas correderas HIPAD
Rolling and load testing

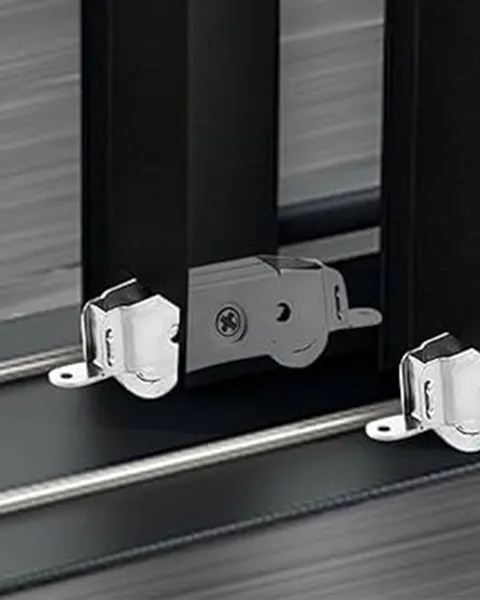

Final assembly and functional inspection of a sliding door roller
Functional inspection

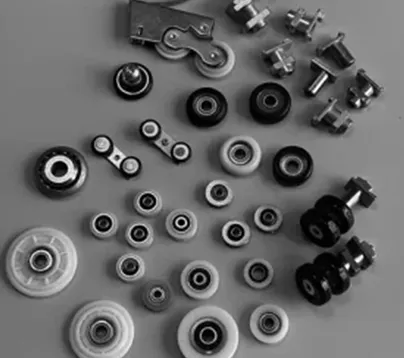

Roller housings and wheels with different surface treatments
Surface treatment
Cajas de rodillos en palés listas para exportar
Embalaje para exportación

Quality control and testing

  • Incoming inspection of nylon and POM resin, steel strip and bearings
  • Dimensional checks of wheels and housings against the profile cavity
  • Continuous rolling cycle tests, static and dynamic load checks
  • Noise, smoothness and bracket strength checks on finished rollers
  • Salt spray checks for plated and stainless housings

HIPAD is ISO 9001 certificados, y los productos correspondientes llevan CE, GS y CSA C-UL certification. SGS or BV third-party inspection is available, and test reports are provided per model on request.

OEM / ODM rollers

  • Copy and improve a sample roller to fit your profile cavity
  • Choose wheel material, color, diameter, groove and bearing
  • Galvanized, stainless steel 304 / 316 or aluminum housings
  • Logo stamped on the housing, private-label bags and cartons, incluso para cantidades pequeñas
  • Bulk packing for distributors or kit packing for window factories
1. Sample or drawingSend a roller sample, profile section or drawing
2. Muestras5–7 days for existing molds
3. Producción20–25 working days · MOQ from 1000 pcs by model
4. EnvíoFOB Qingdao o cualquier puerto de China · Depósito del 30 %, 70 % antes del envío
Roller buying guides

More Guides on Rollers and Bearings

Sliding Door Roller Terms

TérminoSignificadoTambién se conoce como
Sliding door rollerWheel, bearing and housing that carry a sliding panelDoor wheel, runner, carriage, roldana
Tandem rollerTwo wheels in one housingDouble-wheel roller, twin roller
Roller stripLong housing with 4–8 wheels in lineInline carriage, multi-wheel roller
Embedded rollerRoller hidden inside the bottom railConcealed roller, built-in roller
Bottom-rollingDoor weight carried on a floor or sill trackBottom-running
Top-hungDoor weight carried on an overhead trackTop-running, hanging
ZZ / RSMetal-shielded / rubber-sealed ball bearing2Z / 2RS
GrooveShape of the wheel tread (U, V, flat)Wheel profile

Sliding Door Roller FAQ

¿Cuáles son los principales tipos de rodamientos para puertas correderas?

Los principales tipos son los rodamientos de rueda simple, los rodamientos tándem (doble rueda), los rodamientos empotrados ocultos en el perfil, las tiras de rodamientos de ruedas múltiples, los rodamientos colgantes o con soporte y los rodamientos de suspensión superior que sostienen la puerta desde una guía superior. El sistema de la puerta y el peso de la hoja determinan cuál es el modelo adecuado.

¿Qué es mejor para los rodamientos de puertas correderas: ruedas de nailon o de acero?

Las ruedas de nailon son más silenciosas y desgastan menos las guías de aluminio, por lo que resultan ideales para ventanas y la mayoría de las puertas residenciales. Las ruedas de acero y de acero inoxidable soportan cargas más pesadas y son adecuadas para puertas grandes sobre guías de acero o acero inoxidable. Las ruedas de POM y PU se sitúan en un punto intermedio, ofreciendo un deslizamiento más suave y silencioso que el nailon estándar.

¿Cuánto peso puede soportar el rodillo de una puerta corredera?

It depends on the roller type. As a planning guide, window rollers carry about 20–40 kg per sash, single-wheel door rollers 40–80 kg per panel, tandem rollers 80–150 kg and multi-wheel roller strips 120–300 kg. Choose rollers rated for at least 1.5 times the share of weight each one carries.

¿Cómo mido el rodillo de una puerta corredera para reemplazarlo?

Mida la longitud, el ancho y la altura de la carcasa, el diámetro y el ancho de la rueda, el perfil de la ranura, el rango de ajuste y el método de fijación, y tome nota de la forma del riel. Enviar el rodillo antiguo o una sección del perfil es la forma más rápida de conseguir una coincidencia exacta.

¿Cuál es la diferencia entre los rodamientos ZZ y RS en los rodillos?

ZZ bearings have two metal shields and run with lower friction, which suits indoor doors and windows. RS bearings have rubber seals that keep out fine dust and water, which suits patio doors, bathrooms and coastal sites.

¿Por qué salta del riel mi puerta corredera?

Las causas habituales son una ranura de la rueda que no coincide con el riel, ruedas desgastadas o rodillos ajustados a diferentes alturas. Haga coincidir el perfil de la ranura con el riel, reemplace los rodillos desgastados y ajuste ambos rodillos para que la puerta quede nivelada.

¿Pueden fabricar rodillos que coincidan con nuestro perfil o muestra?

Yes. Send a sample roller, a profile section or a drawing. We match the housing to the cavity and choose the wheel material, color, groove and bearing, using our 2000+ existing molds or a new private mold.

¿Cuál es el MOQ y el plazo de entrega para los rodamientos OEM?

MOQ starts from 1000 pcs and depends on the model. Samples from existing molds take 5–7 days and mass production 20–25 working days. Logo stamping and private-label packaging are available even for small quantities.

¿Es HIPAD un fabricante de rodillos o una empresa comercializadora?

HIPAD is a manufacturer that started in 2000 with bearing assembly and produces rollers with its own injection molding machines, molds and assembly lines. HIPAD is ISO 9001 certified. Qingdao Hipad International Trade Co., Ltd. handles export.

Last updated: October 2026 · Reviewed by Allen, Technical Engineer, HIPAD

Send Your Roller Requirements To HIPAD

¿Por qué elegirnos?

A bearing and roller factory since 2000, supplying sliding door and window rollers to profile system companies, window and door factories, distributors and importers in 60+ countries. Our commitment includes:

  • Certificación ISO 9001; marcas CE, GS y CSA C-UL para los productos correspondientes; posibilidad de inspección por parte de SGS / BV
  • In-house wheels, bearings and housings: 60+ injection molding machines, 2000+ molds
  • Muestras en 5-7 días; producción en serie en 20-25 días laborables
  • OEM / ODM: matched to your profile, wheel color, logo and packaging, even for small quantities

Send a sample roller, profile drawing or panel weight. We reply within 24 hours with a matched model and a factory price list.

Solicita un presupuesto

    • Nombre de la empresa *

    • Correo electrónico de contacto *

    • País / Región*

    • WhatsApp*

    • Cantidad estimada del pedido*

    • Mensaje*

    Solicitar cotización

      Responderemos en un plazo de 24 horas. Para solicitudes urgentes, contáctenos por WhatsApp/WeChat al +86 137 9191 8989 o llame directamente al mismo número.

      *Respetamos la confidencialidad de sus datos y protegemos toda la información.

      Solo utilizaremos sus datos para responder a su solicitud y nunca enviaremos correos no solicitados ni mensajes promocionales.
